DYNAMIC RANDOM ACCESS MEMORY

DRAM

dram image
Features DRAM (Dynamic random-access memory) is the most common type of random-access memory(RAM) for personal computers and workstations. A variety of other RAM interfaces for the computer includes VRAM, SDRAM and so on.
  • DDR3/DDR4 Components The double data rate type SDRAM is a type of
    synchronous dynamic random-access memory
    (SDRAM) with a high bandwidth ("Duble Data Rate")
    interface.
  • LPDDR3/LPDDR4 Components LPDDR3 and LPDDR4 (Low Power DDR) is a mobile
    DDR SDRAM standard, designed for mobile computing.
    It is an optimized solution for diverse applications that
    require higher performance with lower power consumption
    within a small form factor.

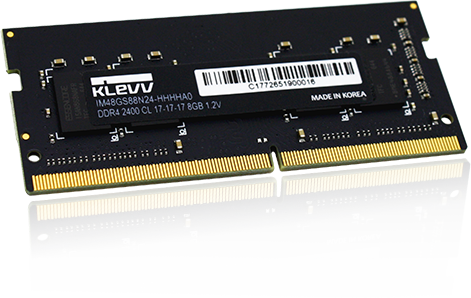

  • DRAM Module DRAM (Dynamic random-access memory) is the most common kind of random-access
    memory for personal computers and workstations.
    All ESSENCORE memory modules are tested and produced in accordance with a strict
    quality control process for the best performance and stable operation.
    ESSENCORE adopts the latest technology and monitors each stage of the memory module
    production process to ensure the best quality possible. ESSENCORE, a company which
    has accumulated considerable know-how in the memory field,
    is here to provide you with the best solutions that will guarantee success for your business.

Specifications

DDR5
Type
  • DDR5 Unbuffered DIMM
  • DDR5 Small Outline DIMM
Frequency 4800,5600
Capacity 16GB(16GBx1)
32GB(16GBx2)
Voltage 1.1V
CL Value 40-40-40-77
46-46-46-90
Warranty Limited Lifetime Warranty
DDR4
Type
  • 288 Pin DDR4 Unbuffered DIMM
  • 260 Pin DDR4 Small Outline DIMM
Frequency 2666, 3200
Capacity 4GB(4GBx1), 8GB(4GBx2, 8GBx1), 16GB(8GBx2,16GBx1), 32GB(16GBx2)
8GB(8GBx1), 16GB(8GBx2, 16GBx1), 32GB(16GBx2, 32GBx1), 64GB(32GBx2)
Voltage 1.2V
CL Value 19-19-19-43
22-22-22-51
Warranty Limited Lifetime Warranty
